Strain gauges convert tiny changes in a material’s shape into measurable electrical signals. Engineers use them to measure force, weight, pressure, torque, and structural stress in laboratories, vehicles, and built assets. Accurate results depend on the right gauge, careful bonding and stable electrical measurement. The principle is straightforward, but installation details influence every reading. The sections below explain how strain gauges work and where they provide useful measurements in practical testing.

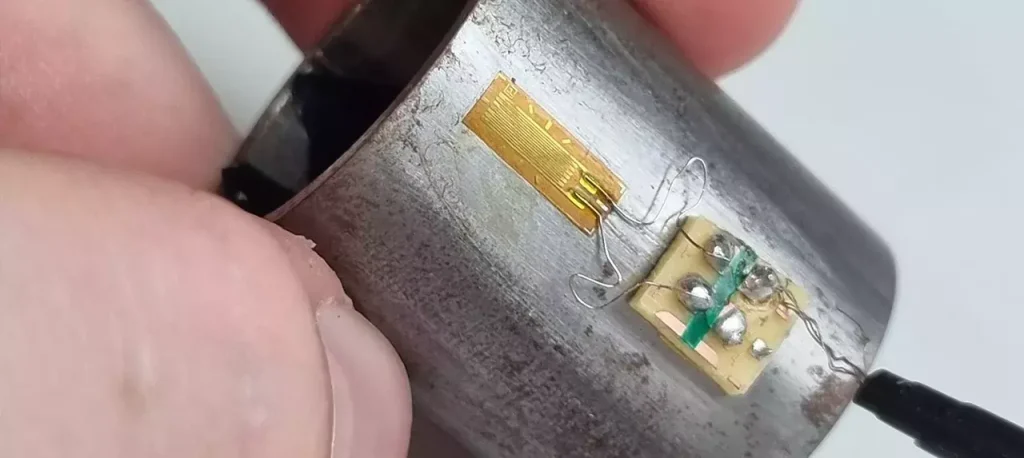

A strain gauge uses a thin metallic grid bonded to a test surface. As the surface stretches or compresses, the grid changes length and electrical resistance. A measuring circuit detects that small change and converts it into strain data. Engineers assessing sensor placement and measurement options can use a strain gauge to add technical context. The sensor records deformation, while the test system calculates the applied load.
How a Strain Gauge Measures Strain
Strain describes the change in an object’s length compared with its original length. Tensile force increases the length, while compressive force reduces it. A bonded strain gauge follows this movement because its metallic grid remains connected to the test surface.
The grid’s electrical resistance changes as its length and cross-sectional area change. Stretching usually increases resistance, while compression decreases it. Because the change is small, the measuring circuit needs stable excitation and accurate signal conditioning.
A Wheatstone bridge circuit converts the resistance change into a voltage signal. Quarter-bridge, half-bridge and full-bridge arrangements suit different testing conditions. Bridge selection affects sensitivity, temperature compensation and the amount of wiring required.
The gauge factor connects the resistance change with the measured strain. A data acquisition system applies calibration factors, records the electrical signal and presents the result in strain units. Calibration against a known load helps identify wiring errors, installation problems and zero drift.
Where Strain Gauges Are Commonly Used
- Materials testing
Laboratories bond strain gauges to metal, composite and polymer test pieces during tensile, compression and bending tests. The readings show how a specimen deforms before permanent damage occurs.
Testing engineers compare strain data with force, displacement and failure observations. This combination helps assess stiffness, yield behaviour and load distribution during controlled tests.
- Load cells and weighing systems
Load cells use strain gauges to measure force and mass. The gauges sit on a machined elastic element that bends slightly under load.
The electrical output changes in proportion to that deformation. After calibration, the system displays force or mass through a controller, indicator or data acquisition platform.
- Vehicle and machine testing
Automotive and mechanical engineers place gauges on chassis members, shafts, suspension components and machine frames. Measurements reveal how parts respond under acceleration, braking, vibration and applied torque.
A shaft-mounted arrangement measures torsional strain during rotation. Slip rings or wireless telemetry transmit the signal when fixed wiring cannot move with the component.
- Structural monitoring
Engineers use strain gauges on bridges, beams, pressure vessels and support structures. The sensors record changes caused by traffic, internal pressure, thermal movement or applied loads.
Long-term monitoring requires protection against moisture, temperature changes and mechanical damage. The installation must maintain reliable electrical connections throughout the measurement period.
Installation and Measurement Considerations
Surface preparation directly affects the quality of a bonded strain gauge installation. The area must be clean, smooth, and free from grease, paint, oxidation, and loose material.
Alignment also matters. The gauge grid should follow the expected strain direction because angular errors reduce measurement accuracy. Transverse strain requires a different gauge arrangement or a rosette.
Temperature changes affect both the test material and the gauge resistance. Compensation methods reduce thermal effects, but the installation still needs suitable environmental control and calibration.
Lead wires require careful routing and strain relief. Movement at the connection point can create false readings, while damaged insulation allows electrical noise or moisture into the circuit.
Selecting the Right Gauge
Gauge length should match the strain field across the test area. A short gauge measures local behaviour, while a longer gauge averages strain over a wider region.
The backing material, adhesive and grid construction must suit the surface and operating conditions. Temperature range, humidity, chemical exposure and expected strain level all affect that choice.
Measurement direction determines whether a single gauge or a rosette is appropriate. A rosette contains multiple grids at set angles, allowing engineers to calculate strain where the principal direction is unknown.
The final selection should match the bridge circuit, excitation voltage, data acquisition equipment and calibration method. These details keep the electrical signal within the measuring system’s usable range.
Conclusion
Strain gauges provide a direct way to measure deformation under load. Their performance depends on the sensing grid, bridge circuit, surface preparation, alignment and environmental control. Engineers use them in materials testing, load cells, rotating machinery, vehicles and structural monitoring. Before selecting a gauge, define the expected strain direction, temperature range, surface material, and measurement circuit. That information narrows the suitable options and supports a reliable installation.
